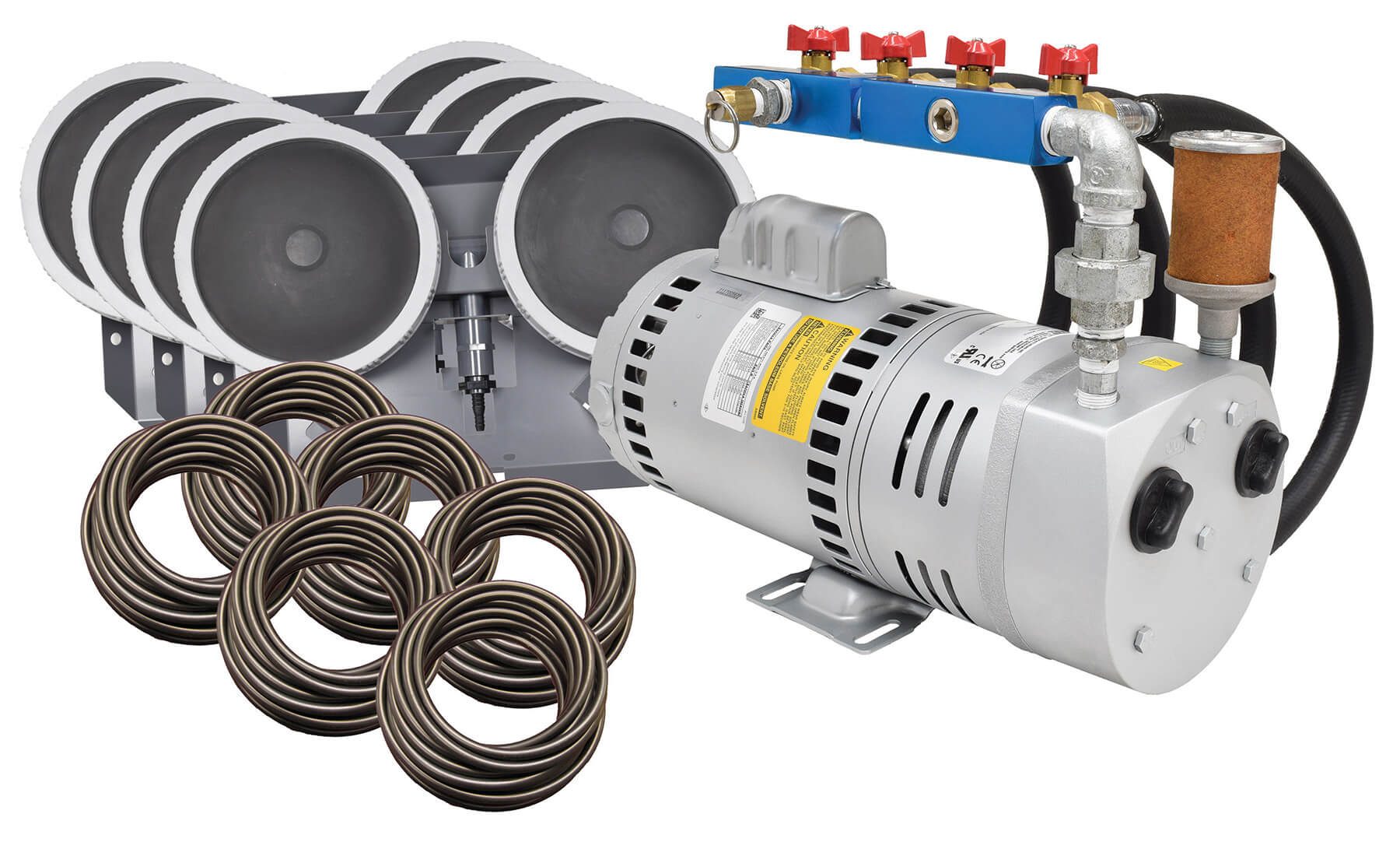

Rotary Vane Pond Aeration System - 3/4 HP Kit w/ Quick Sink Tubing

PA75W Rotary Vane Pond Aeration System – 3/4 HP Kit with Quick Sink Tubing

PA75W features:

• 3/4 hp Stratus RV75 Rotary Vane compressor
• Four valve manifold with pressure relief
• Valved outlet with heat reducing hose and 1/2″ connections
• Four QS2 Quick Sink self weighted dual head air diffusers
• 600′ 1/2″ Quick Sink weighted tubing
• Approximately 2.4 cfm of air flow per diffuser
• Typical operation cost of $2.98 per 24 hours at .09¢ per kWh, actual cost may vary
• PA75W requires weather protection for the compressor

Aeration Kit for Ponds up to 4 acres
1 Year Warranty on Compressor
5 Year Warranty on Tubing and Diffusers

Additional Info

• Tubing 600 ft 1/2" Quick Sink
• Horsepower 3/4 HP
• Voltage 115v (add 2 behind part # for 230v)
• Amps 12/6 amps
• Maximum Air Flow 10 cfm
• Maximum Depth 18'
• Weight 377
• In Aeration Acres Up to 4 acres
